Multiple Displays

[hughbert]

I just got a new(ish) laptop and was wondering if there is a way to get multiple displays working with 21.3 using the HDMI output of the laptop. Any help would be appreciated.

Thank you.

Code: Select all

System:    Kernel: 6.1.0-7mx-ahs-amd64 [6.1.20-1~mx21+1] x86_64 bits: 64 compiler: gcc v: 10.2.1
           parameters: BOOT_IMAGE=/boot/vmlinuz-6.1.0-7mx-ahs-amd64
           root=UUID=<filter> ro quiet video=1600x1200* splash
           Desktop: KDE Plasma 5.20.5 tk: Qt 5.15.2 wm: kwin_x11 vt: 7 dm: SDDM
           Distro: MX-21.3_ahs_x64 Wildflower January 15  2023
           base: Debian GNU/Linux 11 (bullseye)
Machine:   Type: Laptop System: LG product: 17Z95P-K.AAE8U1 v: 0.1 serial: <filter> Chassis:
           type: 10 v: 0.1 serial: <filter>
           Mobo: LG model: 17Z95P v: FAB1 serial: <filter> UEFI: Phoenix v: T4ZF0040 X64
           date: 10/06/2021
Battery:   ID-1: CMB0 charge: 63.0 Wh (83.7%) condition: 75.3/80.0 Wh (94.1%) volts: 8.3 min: 7.7
           model: LG LGC-LGC type: Li-ion serial: <filter> status: Discharging cycles: 62
CPU:       Info: Quad Core model: 11th Gen Intel Core i7-1195G7 bits: 64 type: MT MCP
           arch: Tiger Lake family: 6 model-id: 8C (140) stepping: 2 microcode: 28 cache:
           L2: 12 MiB
           flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx bogomips: 46694
           Speed: 1200 MHz min/max: 400/5000 MHz Core speeds (MHz): 1: 514 2: 541 3: 1200 4: 2900
           5: 2900 6: 2900 7: 2900 8: 2900
           Vulnerabilities: Type: itlb_multihit status: Not affected
           Type: l1tf status: Not affected
           Type: mds status: Not affected
           Type: meltdown status: Not affected
           Type: mmio_stale_data status: Not affected
           Type: retbleed status: Not affected
           Type: spec_store_bypass mitigation: Speculative Store Bypass disabled via prctl
           Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer sanitization
           Type: spectre_v2
           mitigation: Enhanced IBRS, IBPB: conditional, RSB filling, PBRSB-eIBRS: SW sequence
           Type: srbds status: Not affected
           Type: tsx_async_abort status: Not affected
Graphics:  Device-1: Intel TigerLake-LP GT2 [Iris Xe Graphics] vendor: LG driver: N/A
           alternate: i915 bus-ID: 00:02.0 chip-ID: 8086:9a49 class-ID: 0300
           Device-2: Realtek LG Camera type: USB driver: uvcvideo bus-ID: 3-2:2 chip-ID: 0bda:5641
           class-ID: 0e02 serial: <filter>
           Display: x11 server: X.Org 1.20.14 compositor: kwin_x11 driver: loaded: vesa
           unloaded: fbdev,modesetting display-ID: :0 screens: 1
           Screen-1: 0 s-res: 2560x1600 s-dpi: 96 s-size: 677x423mm (26.7x16.7")
           s-diag: 798mm (31.4")
           Monitor-1: default res: 2560x1600 hz: 93
           OpenGL: renderer: llvmpipe (LLVM 14.0.5 256 bits) v: 4.5 Mesa 22.0.5 direct render: Yes
Audio:     Device-1: Intel Tiger Lake-LP Smart Sound Audio vendor: LG
           driver: sof-audio-pci-intel-tgl alternate: snd_hda_intel,snd_sof_pci_intel_tgl
           bus-ID: 00:1f.3 chip-ID: 8086:a0c8 class-ID: 0401
           Sound Server-1: ALSA v: k6.1.0-7mx-ahs-amd64 running: yes
           Sound Server-2: PulseAudio v: 14.2 running: yes
Network:   Device-1: Intel Wi-Fi 6 AX201 driver: iwlwifi v: kernel modules: wl port: 3000
           bus-ID: 00:14.3 chip-ID: 8086:a0f0 class-ID: 0280
           IF: wlan0 state: up mac: <filter>
           IF-ID-1: tun0 state: unknown speed: 10 Mbps duplex: full mac: N/A
Bluetooth: Device-1: Intel type: USB driver: btusb v: 0.8 bus-ID: 3-10:4 chip-ID: 8087:0026
           class-ID: e001
           Report: hciconfig ID: hci0 rfk-id: 1 state: down bt-service: N/A rfk-block:
           hardware: no software: no address: <filter>
           Info: acl-mtu: 1021:4 sco-mtu: 96:6 link-policy: rswitch sniff link-mode: slave accept
Drives:    Local Storage: total: 476.94 GiB used: 82.79 GiB (17.4%)
           SMART Message: Unable to run smartctl. Root privileges required.
           ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: SK Hynix model: HFM512GD3JX013N
           size: 476.94 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s lanes: 4
           type: SSD serial: <filter> rev: 41000C20 temp: 32.9 C scheme: GPT
Partition: ID-1: / raw-size: 244.14 GiB size: 239.25 GiB (98.00%) used: 82.74 GiB (34.6%) fs: ext4
           dev: /dev/nvme0n1p6 maj-min: 259:6
           ID-2: /boot/efi raw-size: 260 MiB size: 256 MiB (98.46%) used: 48.5 MiB (19.0%)
           fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
Swap:      Alert: No swap data was found.
Sensors:   System Temperatures: cpu: 32.0 C mobo: N/A
           Fan Speeds (RPM): N/A
Repos:     Packages: note: see --pkg apt: 2754 lib: 1408 flatpak: 0
           No active apt repos in: /etc/apt/sources.list
           Active apt repos in: /etc/apt/sources.list.d/brave-browser-release.list
           1: deb [arch=amd64] https://brave-browser-apt-release.s3.brave.com/ bullseye main
           Active apt repos in: /etc/apt/sources.list.d/debian-stable-updates.list
           1: deb http://deb.debian.org/debian bullseye-updates main contrib non-free
           Active apt repos in: /etc/apt/sources.list.d/debian.list
           1: deb http://deb.debian.org/debian bullseye main contrib non-free
           2: deb http://security.debian.org/debian-security bullseye-security main contrib non-free
           Active apt repos in: /etc/apt/sources.list.d/microsoft-edge-dev.list
           1: deb [arch=amd64] https://packages.microsoft.com/repos/edge/ stable main
           Active apt repos in: /etc/apt/sources.list.d/mx.list
           1: deb http://mxrepo.com/mx/repo/ bullseye main non-free
           2: deb http://mxrepo.com/mx/repo/ bullseye ahs
Info:      Processes: 325 Uptime: 55m wakeups: 1687 Memory: 15.31 GiB used: 4.75 GiB (31.0%)
           Init: SysVinit v: 2.96 runlevel: 5 default: 5 tool: systemctl Compilers: gcc: N/A
           alt: 10 Client: shell wrapper v: 5.1.4-release inxi: 3.3.06
Boot Mode: UEFI

[8bit]

Do you have a monitor, and cable? Have you tried hooking them up?

If not, that's the place to start. Get an HDMI capable monitor and HDMI cable.
Goto Settings - Display, and configure your two monitors, (the lappy and the external)

8bit

[hughbert]

Do you have a monitor, and cable? Have you tried hooking them up?

If not, that's the place to start. Get an HDMI capable monitor and HDMI cable.
Goto Settings - Display, and configure your two monitors, (the lappy and the external)

8bit

Yes, I plugged it into the HDMI port and MX doesn't see it.

[FullScale4Me]

According to your laptop's online manual page 97 the key combination of FN and then F7 is identified as "switching between monitor and projector".

Likely when saying 'projector' they are referring to your HDMI output. Most laptops have multiple options with that key combination, not just 2 as the text implies:

1) Monitor only
2) projector only
3) monitor & projector

[hughbert]

According to your laptop's online manual page 97 the key combination of FN and then F7 is identified as "switching between monitor and projector".

Likely when saying 'projector' they are referring to your HDMI output. Most laptops have multiple options with that key combination, not just 2 as the text implies:

1) Monitor only
2) projector only
3) monitor & projector

Yes, it gives me the options; switch to external, switch to internal, extend to left, extend to right, unify output.....none of them change anything while using MX 21.3.

[8bit]

What does your Display dialog look like? Mirror unchecked?




8bit

Edit: Bad cable? Are the monitor and cable known to work?

[hughbert]

What does your Display dialog look like? Mirror unchecked?




8bit

Edit: Bad cable? Are the monitor and cable known to work?

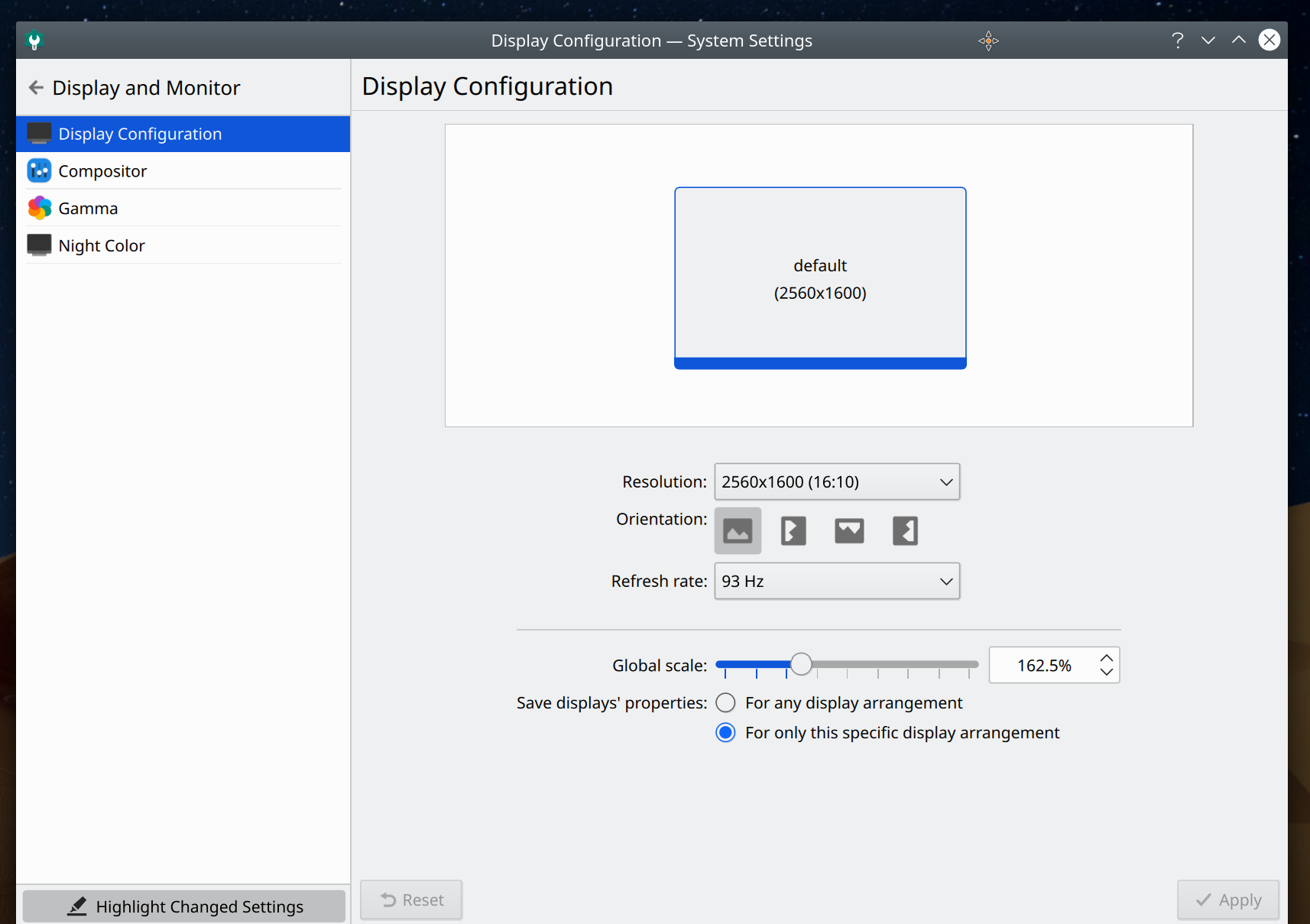

New cable. Tested with windows. My display setting are different from yours, maybe because I'm using Plasma? I don't have a mirror setting. I also tried with MX live usb and it doesn't respond either and it also doesn't have the mirror setting in the display options..
https://iili.io/HUwzov4.png

[Eadwine Rose]

Image changed to link, please read the forum rules.

[MXRobo]

I suppose that xrandr works with KDE so you may want to use xrandr to see if your laptop recognizes the HDMI.
Link may not be the best, just one of the first I stumbled upon: https://linuxhint.com/xrandr-linux-commands/

I'm not familiar with KDE or Plasma, but in Xfce, I wounldn't check .
Automatically enable profiles when new display is connected because for me, if set incorrectly, it automatically sets it incorrectly – maybe something similar in KDE.

So in Xfce, Display, and maybe once recognized and working, later see MX Tweak>Display - - Choose Display for xrandr tweaks.

Also, and I do not understand it, but in Xfce, the position - therefore moving 2D (l,r,u,d) – of the representative display rectangles in Display alters how the monitors are displayed, represented, shown or something.

Sorry no help with KDE

[8bit]

Just a guess, something to do with the lappy's configuration, "BIOS setting, check next, I would." -Yoda

8bit
